18W
5W
.png)
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 3.0V~15V / 0.5~1.5A (7.5W max.)
＊Effeciency : 63% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, CCUL, PSE, BSMI, GS
＊EMI : FCC Class B, CE Class B
＊Wall mount type

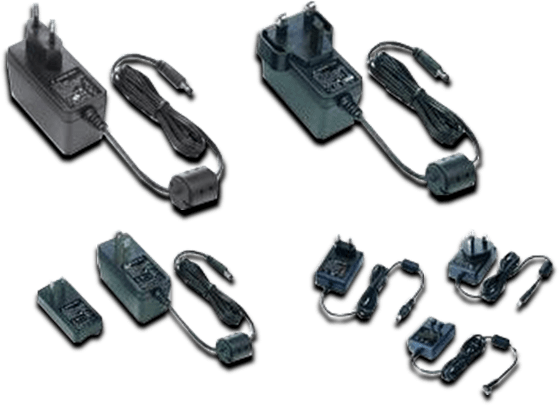

10W
.png)
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 3.3V~24V / 0.5~2.5A (12.5W max.)
＊Effeciency : 70% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, CCUL, PSE, BSMI, GS
＊EMI : FCC Class B, CE Class B
＊Wall mount type

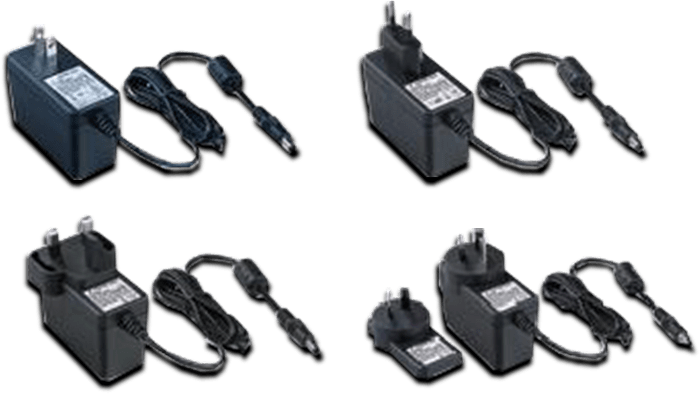

18W
.png)
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 4.5V~24V / 0.6~3.5A (20W max.)
＊Effeciency : 77% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, CCUL, PSE, BSMI, GS
＊EMI : FCC Class B, CE Class B
＊Wall mount type

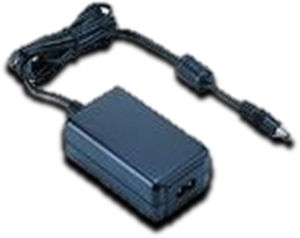

24W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 5V~24V / 1A~4A (24W max.)
＊Effeciency : 76% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B
＊Diemsions : 88(L)x55(W)x34(H) mm
＊Weight : 175g

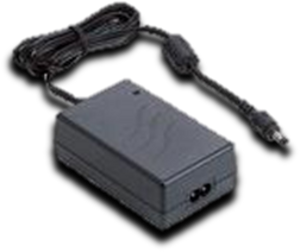

30W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 5V~24V / 1.25A~5A(30W max.)
＊Effeciency : 80% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B
＊Dimensions : 95(L)x58(W)x34(H) mm
＊Weight : 230g

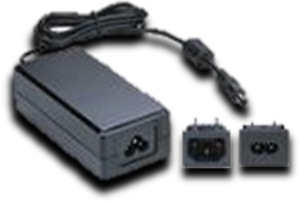

40W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 5V~24V / 1.6A~6A(40W max.)
＊Effeciency : 80% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B, FCC Class B
＊Dimensions : 115(L)x53(W)x37(H) mm
50W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 9V~24V / 2.1A~5A(50W max.)
＊Effeciency : 80% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B, FCC Class B
＊Dimensions : 115(L)x53(W)x37(H) mm

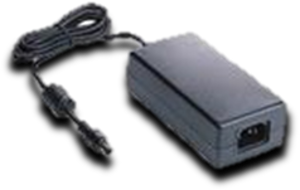

65W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 9V~24V / 2.7A~6A(65W max.)
＊Effeciency : 85% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB,RCM
＊EMI : CE Class B
＊Dimensions : 115(L)x53(W)x37(H) mm

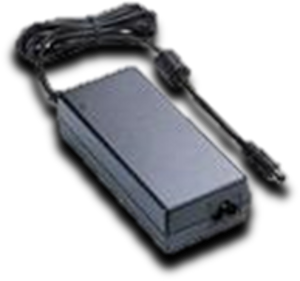

90W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 12V~24V / 3.75A~7A(90W max.)
＊Effeciency : 80% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B, FCC Class B
＊Dimensions : 138(L)x61(W)x36(H) mm
＊Wight : 415g

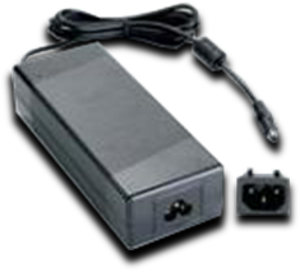

120W
＊INPUT : 90V ~ 264V 47Hz~63Hz
＊OUTPUT : 12V~48V / 2.5A~9A(120W max.)
＊Effeciency : 85% typical
＊M.T.B.F. : 50,000hrs min at 25degC at full load
＊Safety : UL, cUL, PSE, BSMI, GS,CB
＊EMI : CE Class B, FCC Class B
＊Dimensions : 168(L)x66(W)x39(H) mm
＊Weight : 590g
